Orders Processing Section

An overview of the orders-processing.liquid file structure and its components

View as Markdown

This section controls the grouping of all items that are about to be sent to the customer. Editing this section should be done in Views > orders-processing.liquid.

For an overview of all elements, take a look at Subscription Manager Components & Containers.

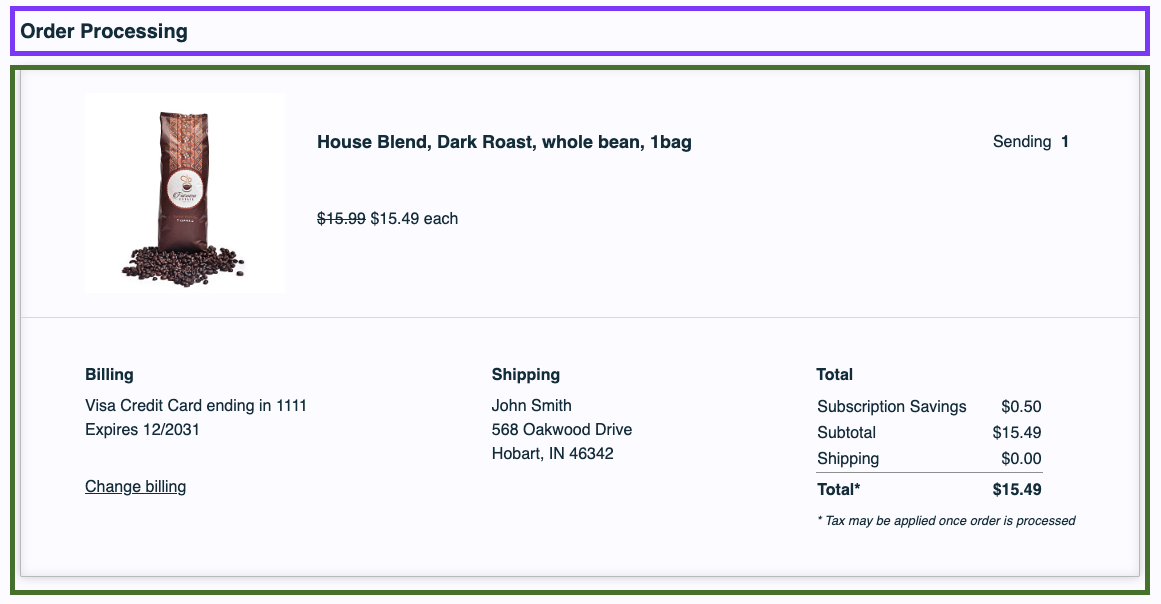

Main Area

The Main area is divided into 2 parts:

Header

Sent-shipment

1{# Upcoming orders entry point #}
2 <section id="og-sent-shipments" aria-labelledby="shipments-sent-header">
3 {# Iterate over all orders #}
4 {% for order in orders | select(status='SEND_NOW') %}
5 {# The markup within this if block is displayed for all sent orders #}
6 {# If at least one sent order exists, display a sent shipment header #}
7{% if index == 0 %}
8 <h1 class="og-title" id="shipments-sent-header">{{ 'shipment_sent_processing' | t }}</h1>
9<div class="og-sent-shipment-info"></div>
10{% endif %}
11 {% set current_order_items = order_items | select(order=order.public_id) %}
12 {% set payment = payments | find(id=order.payment) %}
13 {% set shipping_address = addresses | find(id=order.shipping_address) %}
14<div class="og-sent-shipment">
15{# Shipment body #}
16...
17</div>{# /og-sent-shipment #}
18{% endfor %}
19</section>

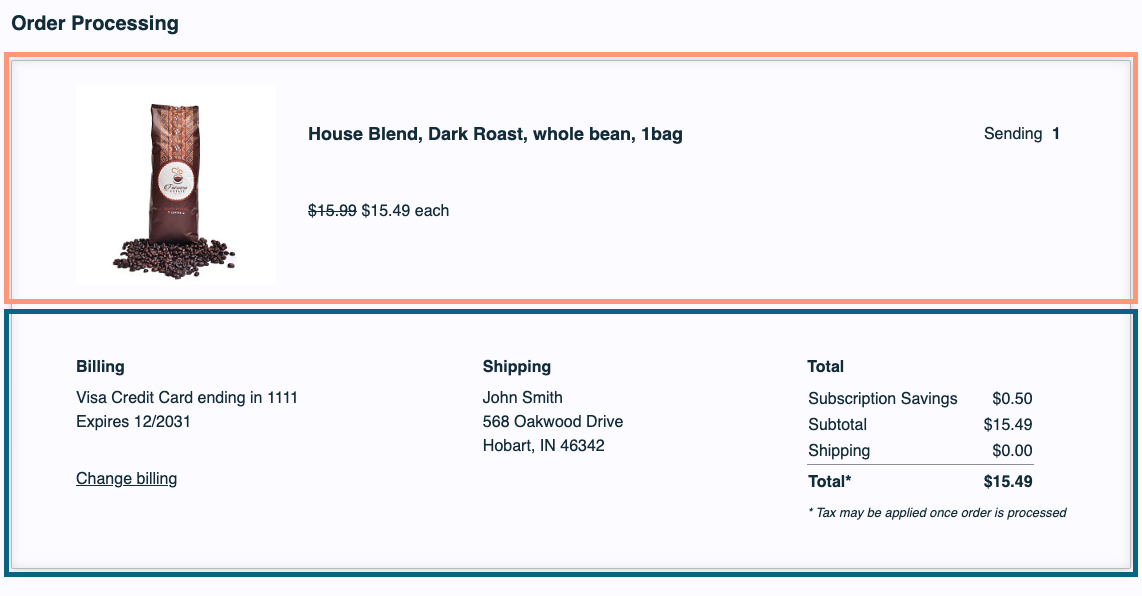

Sent Shipment

Sent Shipment contains 2 sub areas:

shipment-body

shipment-footer

1<div class="og-shipment-body">
2 {# Iterate over all order items in the order #}
3 {% for order_item in current_order_items %}
4 {% set product = products | find(id=order_item.product) %}
5 {% set subscription = subscriptions | find(id=order_item.subscription) %}
6 {# Order item #}
7 <div class="og-product" og-item-id="{{ order_item.public_id }}" og-subscription-id="{{ order_item.subscription }}">
8 {% if product %}
9 <div class="og-product-image-container">
10 <img class="og-product-image" loading="lazy" alt="{{ product.name }}" src="{{ product.image_url | if_defined }}" />
11 </div>
12 <div class="og-name-price-controls-container">
13 <div class="og-description-and-controls">
14 <div class="og-product-description">
15 <h3 class="og-product-name">
16 <a href="{{ product.detail_url | if_defined }}">{{ product.name }}</a>
17 </h3>
18 <h5 class="og-product-display-name">{{ product.display_name }}</h5>
19 </div>{# /og-product-description #}
20 <div class="og-price">
21 {# The markup within this if block is displayed if the final #}
22 {# price represents a discount from the original price #}
23 {% if order_item.show_original_price %}
24 <span class="og-base-unit-price">{{ order_item.price | currency }}</span>
25 {% endif %}
26 <span class="og-final-unit-price">{{ (order_item.total_price / order_item.quantity) | currency }}</span>
27 <span>{{ 'product_price_each' | t }}</span>
28 </div>{# /og-price #}
29 </div>{# /og-description-and-controls #}
30 {# Quantity control #}
31 <div class="og-freq-quantity-controls">
32 <div class="og-quantity og-wrapper">
33 {{ 'item_controls_sending' | t }}
34 <span>{{ order_item.quantity }}</span>
35 </div>
36 </div>{# /og-freq-quantity-controls #}
37 </div>{# /og-name-price-controls-container #}
38 {% endif %}
39 </div>{# /og-product #}
40 {% endfor %}
41</div>{# /og-shipment-body #}
42{# Shipment footer #}
43<div class="og-shipment-footer">
44 <details class="og-mobile og-mobile-payment-shipping">
45 <div class="og-payment-shipping">
46 {% include 'billing-shipping-details' %}
47 </div>
48 <div class="og-total-table-mobile">
49 {% include 'order-total' %}
50 </div>
51 <summary>
52 {{ 'billing_total_header' | t }} - {{ order.total | currency }}
53 </summary>
54 </details>{# /og-mobile-payment-shipping #}
55 <div class="og-payment-shipping og-desktop">
56 {% include 'billing-shipping-details' %}
57 {% include 'order-total' %}
58 </div>{# /og-payment-shipping #}
59</div>{# /og-shipment-footer #}

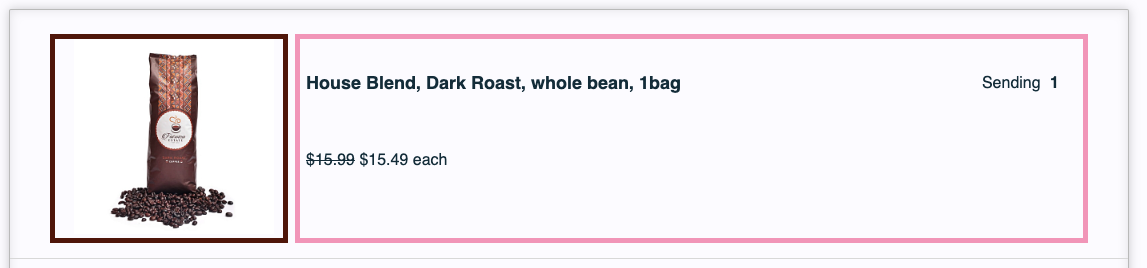

Shipment-body

The Shipment-body section has 2 sub areas:

product image

name-price controls container

1<div class="og-product-image-container">
2 <img class="og-product-image" loading="lazy" alt="{{ product.name }}" src="{{ product.image_url | if_defined }}" />
3</div>
4<div class="og-name-price-controls-container">
5 <div class="og-description-and-controls">
6 <div class="og-product-description">
7 <h3 class="og-product-name">
8 <a href="{{ product.detail_url | if_defined }}">{{ product.name }}</a>
9 </h3>
10 <h5 class="og-product-display-name">{{ product.display_name }}</h5>
11 </div>{# /og-product-description #}
12 <div class="og-price">
13 {# The markup within this if block is displayed if the final #}
14 {# price represents a discount from the original price #}
15 {% if order_item.show_original_price %}
16 <span class="og-base-unit-price">{{ order_item.price | currency }}</span>
17 {% endif %}
18 <span class="og-final-unit-price">{{ (order_item.total_price / order_item.quantity) | currency }}</span>
19 <span>{{ 'product_price_each' | t }}</span>
20 </div>{# /og-price #}
21 </div>{# /og-description-and-controls #}
22 {# Quantity control #}
23 <div class="og-freq-quantity-controls">
24 <div class="og-quantity og-wrapper">
25 {{ 'item_controls_sending' | t }}
26 <span>{{ order_item.quantity }}</span>
27 </div>
28 </div>{# /og-freq-quantity-controls #}
29</div>{# /og-name-price-controls-container #}

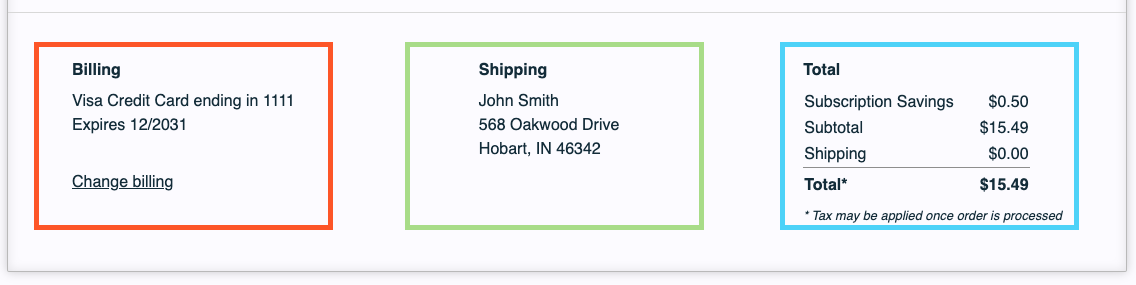

og-billing

og-shipping

og-total-table

1{# Shipment footer #}
2<div class="og-shipment-footer">
3 <details class="og-mobile og-mobile-payment-shipping">
4 <div class="og-payment-shipping
5 {% include 'billing-shipping-details' %}
6 </div>
7 <div class="og-total-table-mobile">
8 {% include 'order-total' %}
9 </div>
10 <summary>
11 {{ 'billing_total_header' | t }} - {{ order.total | currency }}
12 </summary>
13 </details>{# /og-mobile-payment-shipping #}
14 <div class="og-payment-shipping og-desktop">
15 {% include 'billing-shipping-details' %}
16 {% include 'order-total' %}
17 </div>{# /og-payment-shipping #}
18</div>{# /og-shipment-footer #}

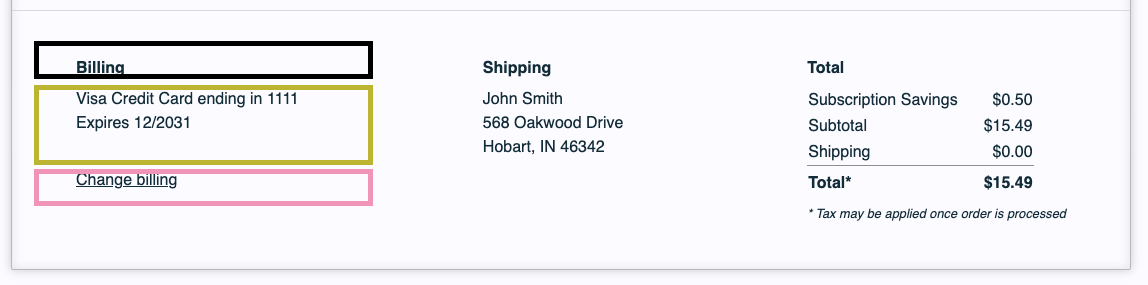

og-billing

footer-header

billing-details-container

change-billing-button

1<details class="og-mobile og-mobile-payment-shipping">
2 <div class="og-payment-shipping">
3 {% include 'billing-shipping-details' %}
4 </div>
5 <div class="og-total-table-mobile">
6 {% include 'order-total' %}
7 </div>
8 <summary>
9 {{ 'billing_total_header' | t }} - {{ order.total | currency }}
10 </summary>
11</details>{# /og-mobile-payment-shipping #}

This section is pulling in the file billing-shipping-details.liquid and it will output in place of {% include 'billing-shipping-details' %}:

1{% if payment %}
2 {% set payment_will_be_expired = (payment.orders | find(id=order.public_id)) | get('payment_will_be_expired') %}
3 {% set payment_method_names = 'payment_method_names' | t %}
4 <div class="og-billing">
5 <div class="og-footer-header">
6 {{ 'shipment_unsent_footer_billing_header' | t }}
7 </div>
8 <div class="og-billing-details-container">
9 {% if not 'cc_recycling_enabled' | setting %}
10 {% if payment.is_expired %}
11 <div class="og-payment-is-expired">
12 {{ 'payment_is_expired' | t }}
13 </div>
14 {% elseif payment_will_be_expired %}
15 <div class="og-payment-will-be-expired">
16 {{ 'payment_will_be_expired' | t }}
17 </div>
18 {% elseif payment.is_expiring %}
19 <div class="og-payment-is-expiring">
20 {{ 'payment_is_expiring' | t }}
21 </div>
22 {% endif %}
23 {% endif %}
24 <div og-payment-id="{{payment.public_id}}">
25 <span class="og-payment-type">{{ payment.cc_type }} {{ payment_method_names[payment.payment_method] }}</span>
26 {% if payment.cc_number_ending %}
27 <span class="og-payment-last-4">{{ 'form_billing_ending_in' | t }}</span>
28 {% endif %}
29 </div>
30 <div class="og-payment-expiration-date">
31 {% if payment.public_id %}
32 <span class="og-exp-date">{{ 'form_billing_expiration_date' | t }}</span>
33 {% endif %}
34 </div>
35 </div>{# /og-billing-details-container #}
36 {% if 'external_payment_enabled' | setting %}
37 <a class="og-link og-edit-payment" href="{{ 'external_payment_url' | setting }}">{{ 'shipment_unsent_footer_billing_edit' | t }}</a>
38 {% elseif 'platform' | setting('shopify') == 'shopify' %}
39 {% include 'change-billing-shopify-only' %}
40 {% endif %}
41 </div>{# /og-billing #}
42{% endif %}

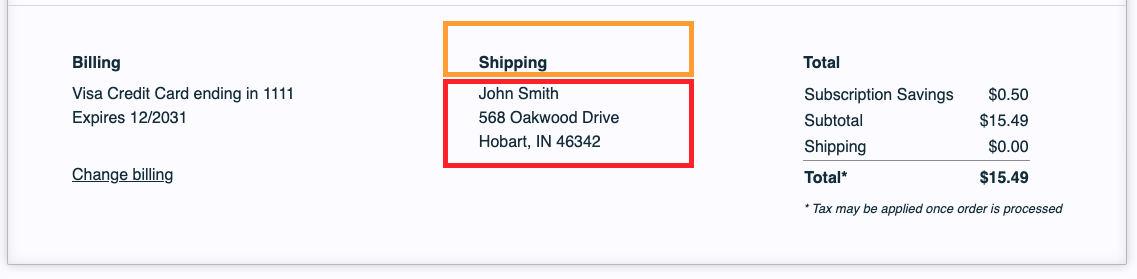

og-shipping

footer-header

shipping-address-container

1<div class="og-payment-shipping og-desktop">
2 {% include 'billing-shipping-details' %}
3</div>{# /og-payment-shipping #}

This section is pulling in the file billing-shipping-details.liquid and from that file will output the following:

1{# Shipping info #}
2{% if shipping_address %}
3 <div class="og-shipping">
4 <div class="og-footer-header">
5 {{ 'shipment_unsent_footer_shipping_header' | t }}
6 </div>
7 <div class="og-shipping-address-container" og-address-id="{{shipping_address.public_id}}">
8 <div class="og-address-name">{{ shipping_address.first_name }}
9 {{ shipping_address.last_name }}</div>
10 <div class="og-address-line-1">{{ shipping_address.address }}</div>
11 <div class="og-address-line-2">{{ shipping_address.address2 }}</div>
12 <div class="og-address-city-state-zip">
13 {{ shipping_address.city }}, {{ shipping_address.state_province_code }}
14 {{ shipping_address.zip_postal_code }}
15 </div>
16 </div>
17 {% include 'change-shipment-address' %}
18 </div>{# /og-shipping #}
19{% endif %}

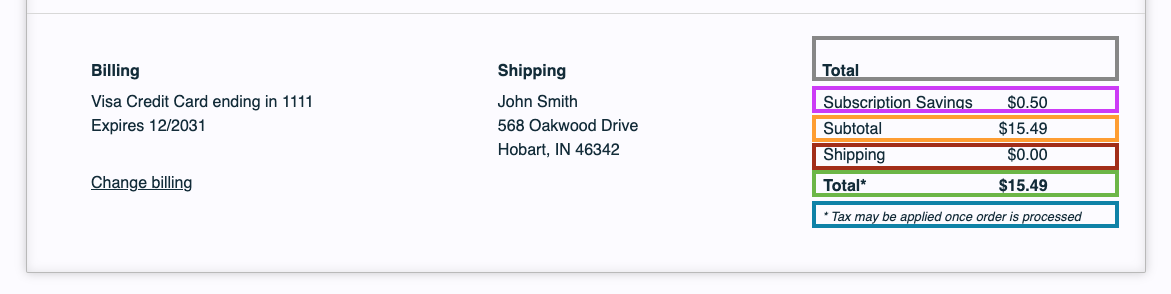

og-total-table

Price grid code is found in order-total.liquid.

footer-header

og-shipment-discount-total

og-shipment-sub-total

og-shipment-shipping-total

og-shipment-total

shipment-total-footer

The order total table is pulled in from the order-total.liquid file and its output will appear in place of {% include 'order-total' %}:

1<div class="og-payment-shipping og-desktop">
2 {% include 'order-total' %}
3</div>{# /og-payment-shipping #}

That output from the order-total.liquid file will look like this:

1{# Order pricing details #}
2<div class="og-total-table">
3<div class="og-footer-header og-desktop">{{ 'shipment_sent_price_total' | t }}</div>
4<table role="grid" class="og-table">
5<tr class="og-pricing-line og-shipment-discount-total">
6<th class="og-total-label" scope="row">{{ 'shipment_sent_price_autosave' | t }}</th>
7<td class="og-total-value">{{ order.discount_total | currency }}</td>
8</tr>
9<tr class="og-pricing-line og-shipment-sub-total">
10<th class="og-total-label" scope="row">{{ 'shipment_sent_price_subtotal' | t }}</th>
11<td class="og-total-value">{{ order.sub_total | currency }}</td>
12</tr>
13<tr class="og-pricing-line og-shipment-shipping-total">
14<th class="og-total-label" scope="row">{{ 'shipment_sent_price_shipping' | t }}</th>
15<td class="og-total-value">{{ order.shipping_total | currency }}</td>
16</tr>
17<tr class="og-pricing-line og-shipment-total">
18<th class="og-total-label" scope="row">{{ 'shipment_sent_price_total' | t }}*</th>
19<td class="og-total-value">{{ order.total | currency }}</td>
20</tr>
21</table>
22<div class="og-shipment-total-footer">{{ 'total_box_disclaimer' | t }}</div>
23</div>{# /og-total-table #}
